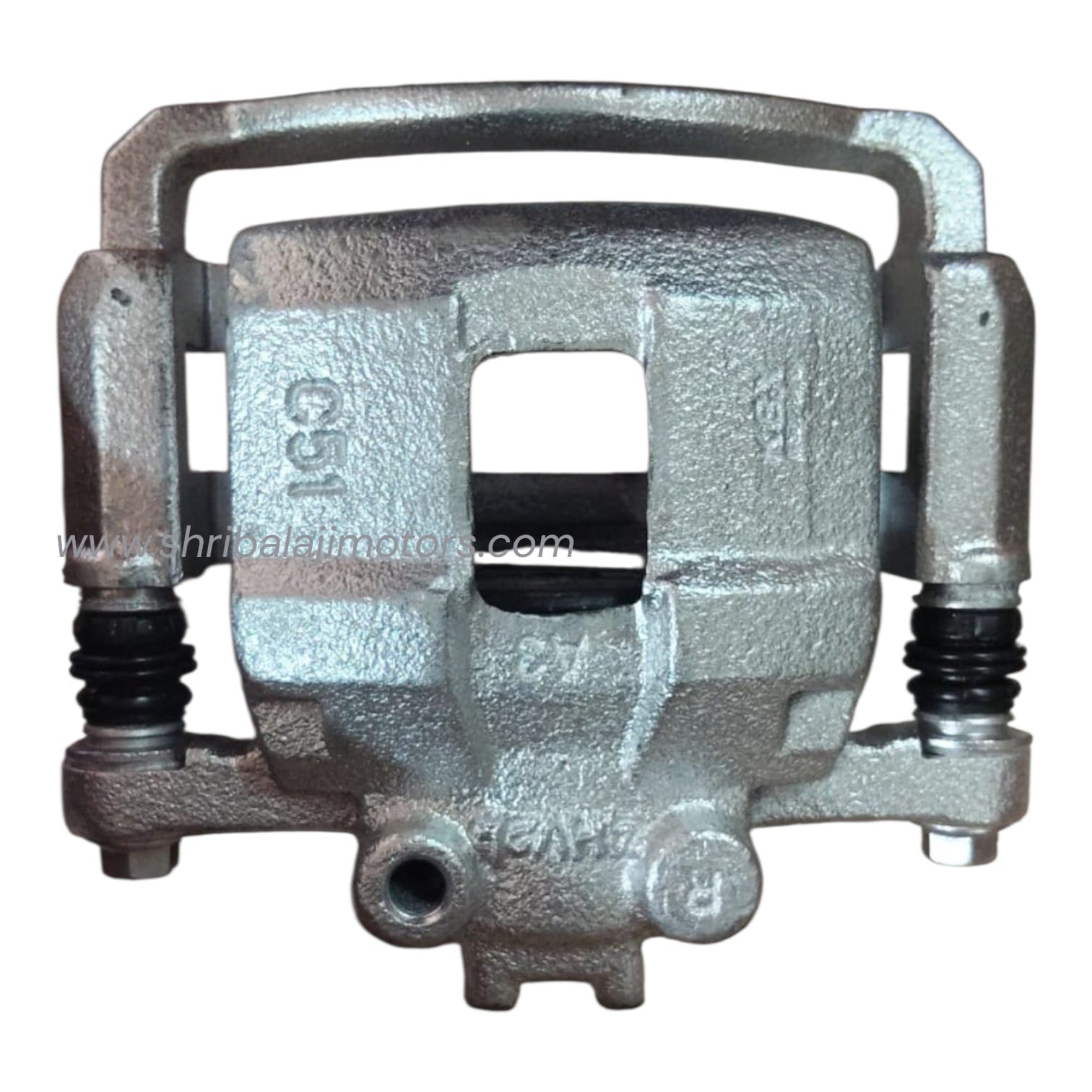

Maximo brake calliper | Front Disc Brake Calliper Assembly

Industrial-Grade Maximo brake calliper for Safe Commercial Deliveries

In commercial light utility trucks like the Mahindra Maximo, a fully operational hydraulic front braking assembly is vital for driver safety and cargo protection. The brake caliper housing acts as the primary hydraulic clamp, pushing high-friction brake pads evenly against the spinning rotor discs. Prolonged operation in severe weather and muddy loading areas causes dirt accumulation inside the slider pins and seal degradation. A damaged or sticking Maximo brake calliper leads to serious driving hazards, including spongy brake pedal response, severe brake fluid weeping, dangerous steering pull during sudden stops, and rapid overheating of the wheel hub assembly. Upgrading to our premium Maximo brake calliper guarantees leak-free fluid pressure containment and smooth piston retraction.

Manufactured using dense, high-grade cast metal, this caliper assembly resists thermal stress and structural deflection under hard panic braking. The inner cylinder walls undergo high-precision automated honing for a silky-smooth piston stroke, while the pre-installed bleeder valve allows for easy, air-free hydraulic fluid servicing.

Key Features & Technical Benefits of Mahindra Maximo Brake Calliper:

• High-Density Cast Iron Housing: Forged from structural heavy-duty cast iron designed to withstand intense hydraulic pressure without warping.

• Leak-Proof High-Temperature Seals: Fitted with durable internal rubber boots and fluid seals that withstand extreme brake fluid temperatures.

• Precision-Guided Slider Pin Assembly: Features pre-lubricated guide pins that promote even pad application and prevent sticking.

• Direct OES Mounting Alignment: Precision-machined to match original Mahindra Maximo mounting specs for a straightforward bolt-on replacement.

Technical Specifications:

Attribute	Specification
Product Name	Front Axle Disc Brake Caliper Assembly / Hydraulic Actuator
Compatible Vehicles	Mahindra Maximo (Plus, HD, Mini Truck, and Commercial Variants)
System Classification	Brake System / Front Axle Hydraulic Mechanical Hardware
Material Base	High-Tensile Heavy-Duty Cast Iron / Steel Piston
Inclusions	Caliper Main Body, Hydraulic Piston, Seals, Dust Boots, and Bleeder Valve
Fitment Classification	Direct OES Standard Replacement Hardware

Professional Installation & Hydraulic Maintenance Guidelines

• Bleed the Hydraulic System Thoroughly: When replacing a faulty Maximo brake calliper, air inevitably enters the fluid lines. Ensure your mechanic performs a full hydraulic line bleed using fresh DOT-rated brake fluid until all air bubbles are expelled through the bleeder screw.

• Inspect the Flexible Brake Hose: Before securing the new caliper assembly, examine the flexible rubber brake hose for cracks, dry rot, or swelling. Replacing a worn brake line at the same time prevents pressure drops and ensures long-term system reliability.
